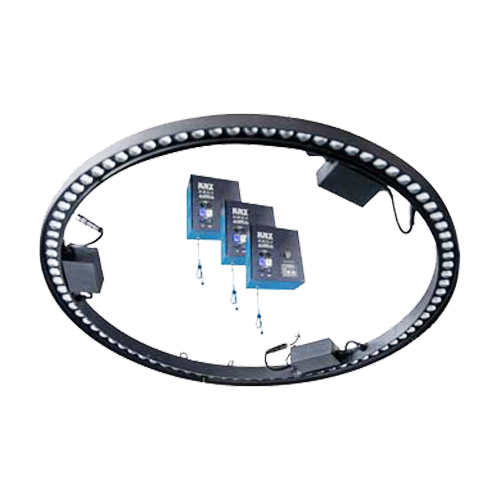

3 Winch + 84cm ring (84 LED RGBW)

描述

three winch+ one led ring(can seprate to 3 parts easy for shipping)
input Vlotage AC100V-240V/50-60HZ
Total power 250W*3 pcs
LEDs of ring 84pcs RGBW*4W
Size of ring Diameter 84CM/ Internal diameter76CM
Ring weight 4.5KG
Winch:3pcs
Max loading weight 10KG
Lifting height 600CM(standard)
Fast speed 100CM/S
Control mode DMX-512
Channel 118CH(each Winch)
Connectors 3 pin XLR connector in and out
Screen 1.8 inch oled display
Load cable diameter Ø5.5MM
Synchronization error Less 6MM
IP rating IP20
Environment temperature – 10℃~50℃
Safety security Physical braking, electronic protection
Installation Vertical lifting
Winch size 38CM*32CM*45CM(Not including hook size)
Winch weight 8KG
Package Carton/Flight case
DMX Signal Cable 2*0.5M㎡*1.5M*3pcs
Power Cable 3*1.25M㎡*1.5M*3pcs
